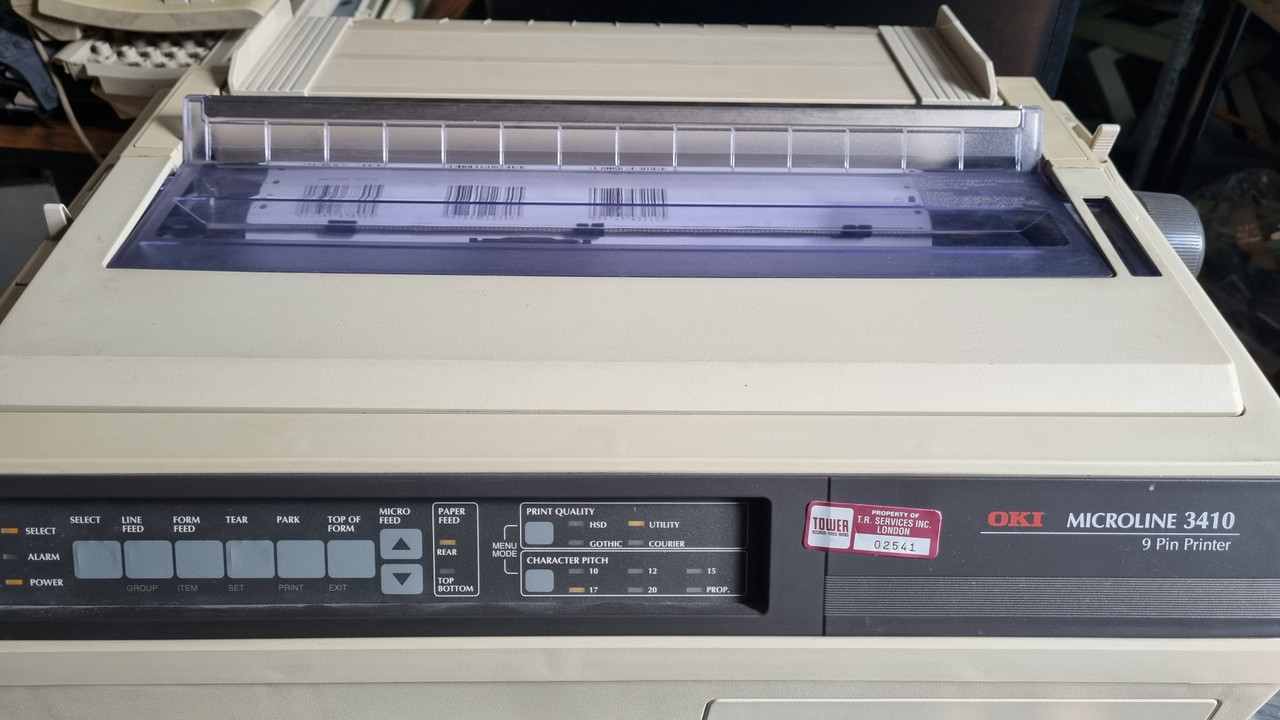

OKI 3410
Hover over image to zoom
Product Description
The ML3410 is a powerful device designed to handle the most data-intensive applications. High print speeds are combined with superior copy capability and durable 9-pin print head, delivering reliable performance.
- MODEL:
- ML3410
ML3410
| Printing Technology | Serial Impact Dot Matrix Method |
|---|---|
| Print Head | 9 Pin |
| Dot Wire Diameter | 0.34 mm |
| Print Direction | Bidirectional/Unidirectional printing, Short line-seeking printing |
| Graphic Resolution | Max. 240(H) x 216(V) dpi |
| Print Speed | High Speed Draft : 550 cps, Utility : 417 cps, Near Letter Quality : 104 cps |
| Line Feed Pitch | 4.23mm (1/6 "), 3.18mm (1/8 "), n x 0.35mm(n/72 ") (n=1-85), n x 0.18mm(n/144 ") (n=0-255), n x 0.12mm(n/216 ") (n=0-255) |
| Feed Speed | 10.0 inches per second |
| Paper Route | Manual (Top), Tractor feeder (Top), Tractor feeder (Rear), Tractor feeder (Bottom), Cut sheet feeder (Rear) |
| Character Pitch | High Speed Draft : 10.0 cpi, 12.0 cpi, 15.0 cpi, 17.1 cpi, 20.0 cpi Utility : 10.0 cpi, 12.0 cpi, 15.0 cpi, 17.1 cpi, 20.0 cpi, Propotional Near Letter Quality : 10.0 cpi, 12.0 cpi, 15.0 cpi, 17.1 cpi, 20.0 cpi, Propotional |
| Printing Width | 136 characters/line at ANK 10 cpi |
| Interface | IEEE1284-1994 Bi-directional Parallel, RS-232C (25pin) |
| Emulation | ESC/P emulation, IBM ProPrinter emulation |
| Receive Buffer | Max. 28KB |
| Resident Font | High Speed Draft, Utility, NLQ Courier, NLQ Gothic, OCR-B |
| Font Style | Bold, Double Width, Double Height, Emphasized, Italics, Over score, Underline |
| 1-D Barcode | UPC-A, UPC-E, EAN8, EAN13, Code39, Interleaved 2 of 5 (ITF) |
| Paper Type | Continuous paper, Continuous copying paper, Cut sheet, Card, Envelope, Label |
| Paper Weight Adjustment | Manual |
| Paper Weight | Continuous paper : 45 - 90 gsm Single part paper : 52 - 76 gsm Multi part paper : 35 - 40 gsm |
| Copy Capability | Normal print mode: original + 7sheets(Total Thickness < 0.36mm) |
| Dimensions(WxDxH) | 607 x 482 x 203 mm |
| Operating Environment | Operating: 5 - 40 °C, 20 - 80 %RH Storage: -10 - 70 °C, 5 - 95 %RH No condensation |
| Power Source | Single phase 230 - 240 VAC ±10%, 50/60 Hz ±2% |
| Power Consumption | Operating: Max. -W (ISO10561 (Utility, Range1) Printing Approx. 75W) Idle: Approx. 30W |
| Safety & Environment Regulation | CE Mark, GS Mark, EMC-Directive |
| Noise Level | Operating :Approx. 58 dBA Idle: < 0 dBA Power Save: < 0 dBA or Background level |
| MTBF(Mean Time Before Failure) | 8,000 hours |
| Ribbon Life | Black : 10 million characters |
| Print Head Life *1 | Approx. 300 million strokes/ pin |
| In the Box | Ribbon cartridge, Power cable, CD-ROM, Others |
Product Videos
OKI 3410 printer 1 test
-
OKI 3410 printer 1 test
Product Videos
Warranty Information
30 days.
